Solver-aided chorale composition

Introduction

Composing music is hard: if you hit the keys on a piano randomly, chances are, it won’t sound great. A music theory aims to distill a musical syntax such that a syntactically correct composition will not sound “wrong.” Under this view, composition becomes a constraint satisfaction problem: given a background theory, find a sequence of composition actions that does not violate the theory’s syntax.

To illustrate this view, here’s a toy project called Choco that I built for composing music in the style of Baroque four-part chorales. It was originally developed as a course project for CS 292C - Computer Aided Reasoning for Software, and was motivated by my earlier memory of doing four-part voice leading in a music theory class. I felt at that time that the rules of four-part harmony were rigid enough, and the process mechanical enough, that it would be possible to automate the process of composing a chorale. Choco is my attempt at doing just that.

The tool is written in Rosette, a really cool solver-aided programming language ¹ that I’ve also been using for my (more serious) research.² Note that the idea of algorithmic composition using symbolic reasoning is not new, dating back to at least 1988 with Ebcioglu’s CHORAL project. This toy project showcases how Rosette greatly simplifies the implementation of such a system: we just need to design a simple representation of chorales and write down the rules of four-part harmony as logical predicates in Racket. Rosette then takes a chorale sketch and automatically compiles it into constraints that can be easily solved by an SMT solver. In particular, there is no need to hand-roll a backtracking search algorithm ourselves, and Rosette does not need to have any understanding of music theory to be able to compose music.

Background

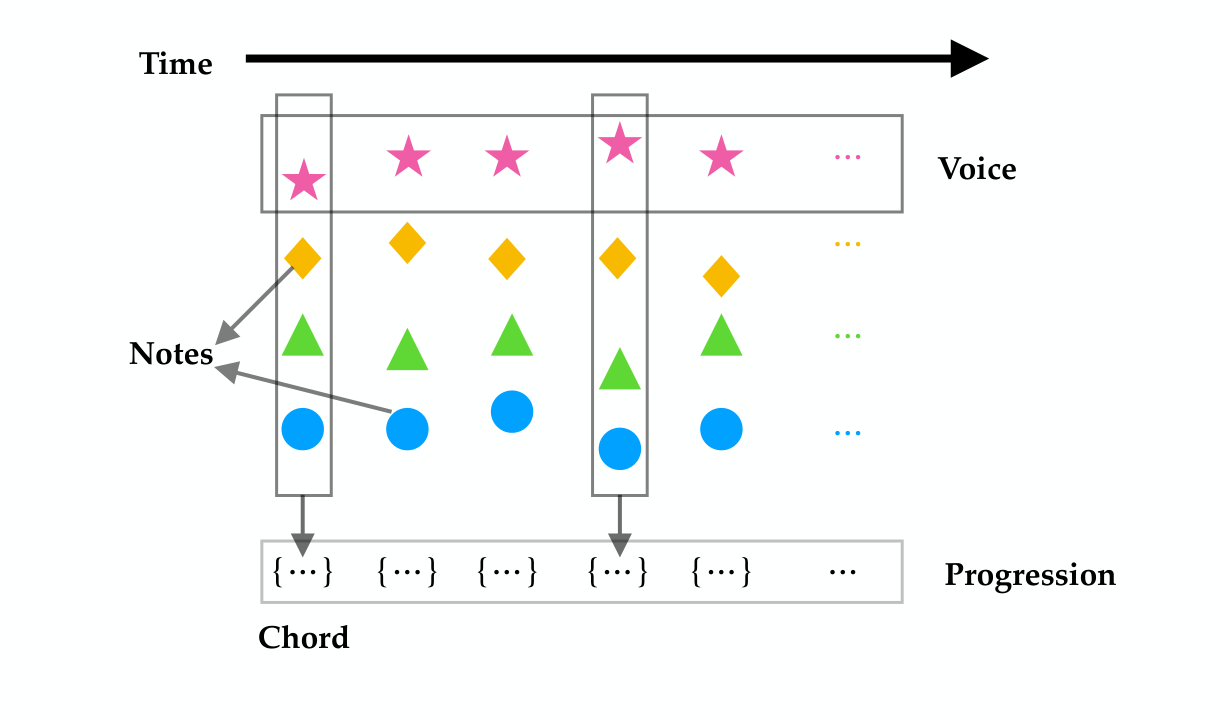

A chorale typically consists of four independent voices. Each voice is a sequence of notes drawn from a fixed collection known as a scale. At each time step, the set of notes across all voices forms a chord, and the evolution of chords over time is called a progression.

How Choco works

1. The user provides a chorale sketch

A sketch is a partial chorale that contains a combination of concrete notes and chords, and symbolic notes and chords. The concrete elements are what the user already has in mind, while the symbolic elements are holes yet to be filled in to make the composition complete.

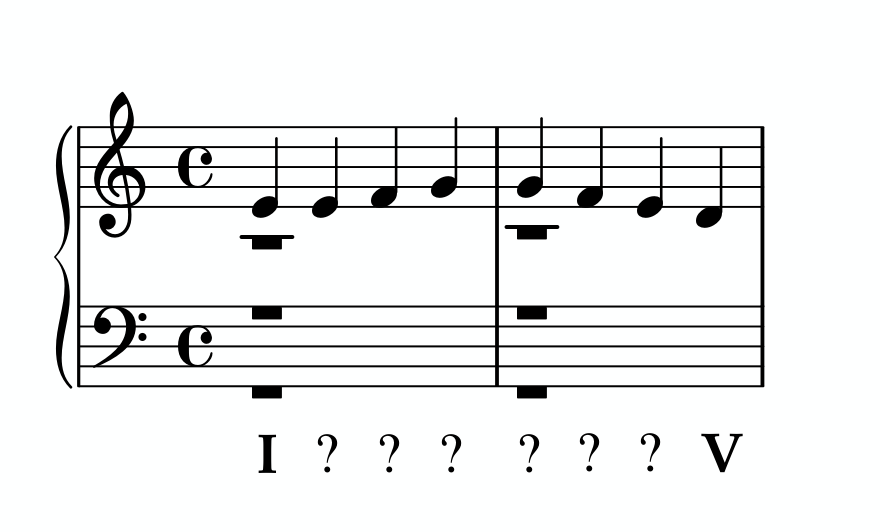

In the sketch below, the user specifies a concrete top voice (the melody they want), while all remaining voices are symbolic. The user also fixes progression’s first and last chords using Roman numerals (I and V), while all chords in between are yet-to-be-determined:

2. Syntax rules become logical predicates

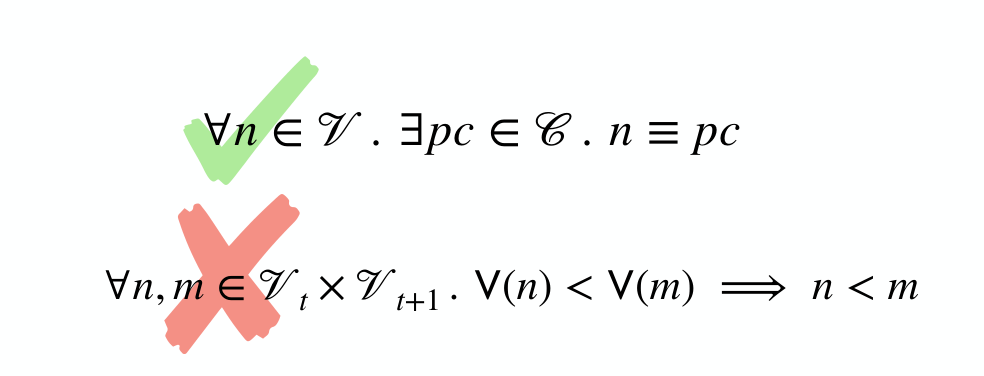

Choco encodes the syntactic rules of classical harmony as logical predicates over the sketch. For instance:

• (Harmony) Every voice must be in harmony with the current chord: each note must match some pitch class of the chord.
• (No voice crossing) Voices cannot “cross” each other between adjacent time steps: if one voice sits above another now, it must remain above at the next step.

3. Angelic execution fills the sketch

Finally, we ask the solver to fill the holes in a way that satisfies all of the syntax rules simultaneously. In Rosette, this is just two lines of code:

1(define model (solve (assert cs)))
2(evaluate sketch model)

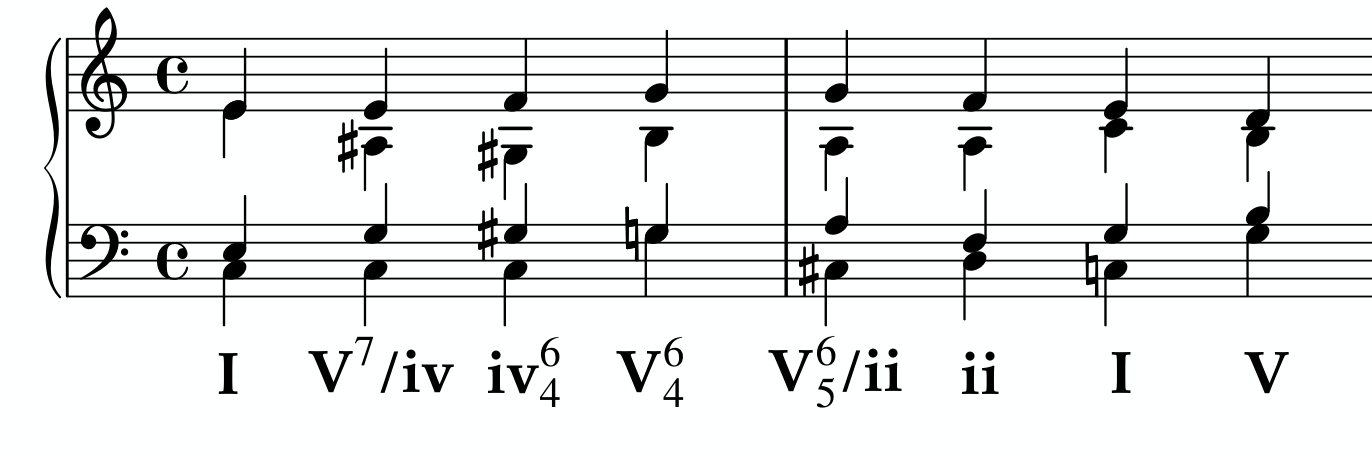

Given the sketch above (a concrete melody bookended by I and V), Choco fleshes it out into a complete four-voice chorale:

Optimizations

Naively throwing the constraints at the solver does not scale, so Choco employs a few tricks:

1. Expensive symbolic computations are pre-computed and looked up from a table instead of being re-derived symbolically.
2. The problem is decomposed both horizontally (temporally, across time steps) and vertically (chordally, across voices), with backtracking to recover when a locally-chosen fragment cannot be extended.
3. Constraints are rewritten to avoid expensive modular-arithmetic operations, which SMT solvers handle poorly.

Future work

1. Mere syntactical correctness does not imply the music should sound good. In fact, the completed chorale shown above is quite janky-sounding. We might want to frame composition as an optimal synthesis problem, to account for soft syntactic constraints (rules that good compositions prefer to follow but may occasionally break), or to bias the search towards more “musical” solutions.
2. Design a DSL for specifying the syntax of different music genres and theories, so the framework isn’t hard-wired to Baroque harmony.
3. Extend the framework to incorporate metric theory and transformational theory.
